Used PCB Loader PLC Control system. Chimall

PCB Loader PLC Control system. Chimall.

Model: L-135C Loader L-160C Loader L-170C Loader L-175C Loader
Power: AC 110/220V ±10V, 50/60HZ
Air Pressure: 5kgf/cm2
PCB Size: 350x(50-250)mm 460x(50-330)mm 535x(50-390)mm
535x(120-460)mm
Transport Height: 900 ±20mm
PCB Direction: left to right (option: right to left)
Magazine Rack Size: 350x320x563mm 460x400x563mm 535x460x570mm
535x530x570mm
Pitches: 10,20,30,40mm
Machine Dimension: 1350x760x1150mm 1600x820x1150mm 1700x880x1150mm
1700x880x1150mm

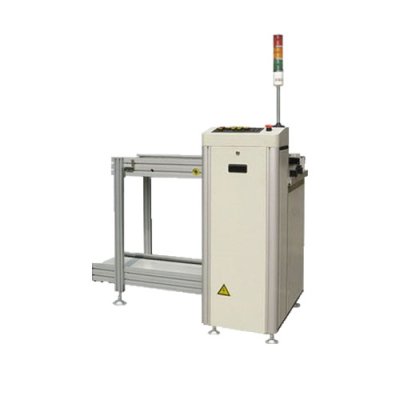

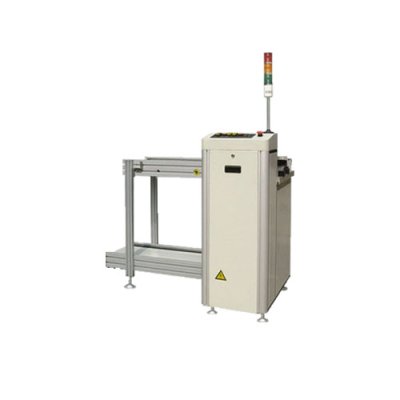

The PCB Loader is designed for loading of PCBs. The unit loads your production line automatically by pushing PCBs out of a magazine onto the conveyor of the down-stream machine. Connect with SMT and AI productions line, safety design ensure not to break any PCB when it is pushed and thus reduce defect rate. Agility operation. With high accuracy, automatic counting, fault alram functions, it is required for a full range of automation equipment.
