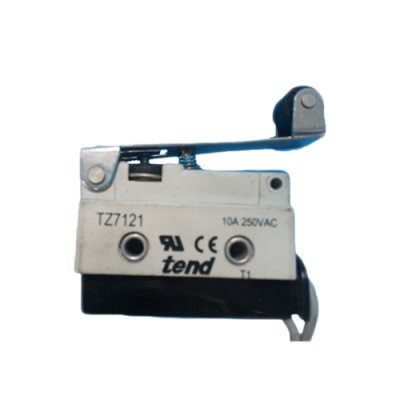

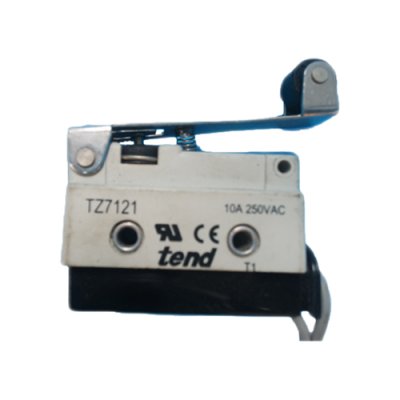

TZ-7121 10A 250VAC Limit stroke micro switch

Pushbutton Switches
Product Name: Micro Switch
Model: AZ-7121
Overall Size: 21×70×72.5mm
Contact Configuration: 1NO1NC
Actuator Action: Momentary ( Self-reset )
Rating Voltage: 250V
Rating Current:10A
Terminal Type:Screw ( 3 terminals )
Color: Silver,Black
Button Material: Metal,Plastic
Contact Resistance: 30m
Insulation Resistance: 100M ( 500VDC )
Dielectric Strength: 1500VAC 1 Minute
Operating Temperature: -15°c ~ +80°c
<; 95%RH
Electrical Life: 1,0000 Cycles
Mechanical Life: 100,000 Cycle
IP Degree: IP65
packaging: 1PCS Micro Switch
